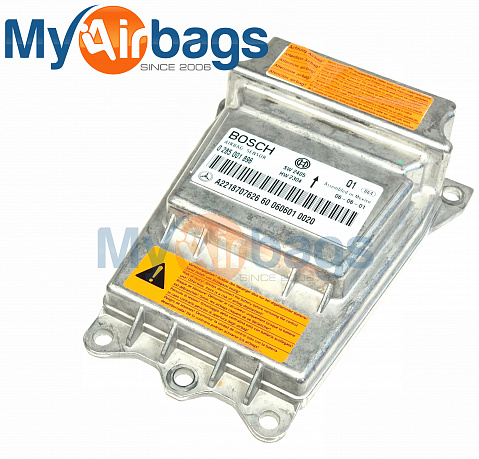

MERCEDES S500 SRS Airbag Computer Diagnostic Occupant Control Module PART #0285001896
Good tested airbag computer modules. Compare part numbers to your original part, to ensure that this part will work for you
Part Number: 0285001896
Out of stock
If your vehicle was in an accident, you can send your airbag control module to us for reset.
This will save you hundreds of dollars and also if you send your original module for reset then no additional trip to the dealer needed for VIN programming, since this is the original module and it is already programmed to your vehicle (Click here for more info)
2010 MERCEDES S500 Good tested airbag control module. MERCEDES S500 SRS Airbag Computer Diagnostic Occupant Control Module PART #0285001896
Part Number: 0285001896
Please compare the part numbers of your original part to this replacement airbag control moduleIf the part numbers do no match, it is unlikely that the airbag module will work in the vehicle.Once the replacement airbag module has been correctly installed in the vehicle the airbag light may still turn on.Again, for the reasons detailed above, you need to verify that you have followed the correct steps and that other parts were not from a flood damaged vehicle.If you have done everything else successfully, the airbag module may need to be reprogrammed for the specific VIN of your car by that manufacturers dealership.This is why we always recommend that you send in your original airbag control module from your vehicle. Each module is coded for the VIN of the vehicle it is in.
If your vehicle was in an accident/collision and now your seat belts are locked and your airbag light on. You will need to check all your seat belts at the front seats and the rear seats to see if they are locked, stuck, loose or do not retract. If they are then they will need to be replaced or rebuilt. We do rebuild seat belts and airbag computer module that controls airbags and seat belts will need to be reset. We can reset your airbag module Click here for more info on what needs to done after an accident.
Our service is 100% guaranteed or money back.
Carefully remove your part from your vehicle. Please see our removal instructions, if you are not sure how to remove it or take it your local body shop.
Securely pack your part, using the correct box so that your part cannot be damaged in transit. Take special care when packing.
Add item to shopping cart and check out. You will need to print out order confirmation page and include it with your parts.
Inside the package include: Your Name, Return Address, Phone Number.
Once we receive your part, we will repair it and ship it back to you within 24 hours.
First, find the SRS computer module. In most cars, it is under the center console that is between the two front seats, or center of the dash on the floor. In most GM cars it is under the driver or passenger seat.
Disconnect the positive battery cable and wait 3 min.
You are now safe to unplug the airbag control module harness wiring plugs.
Steps to install airbag control module
All airbag srs components must be installed and connected properly before installing the airbag control module. This includes air bags, seat belts, clock spring and impact sensors.
Disconnect the battery and bolt down the module and then connect the harness wiring plugs.
Wait 3 minutes before installing the airbag module in the vehicle.
Bolt down module with all bolts and then connect harness plugs. (if not then, could deploy roof airbags and seat belts)
The vehicle needs to be flat on the ground. Not elevated on a jack or lift. (if not then, could deploy roof airbags and seat belts)
Reconnect battery cables.
*Disclaimer: The buyer assumes all risks associated with removing, installing, and usage of a re-manufactured part(s).
Warranty covers the repair of the part for one full year.
If the repair fails within a year, we will repair the part again. In the rare occasion that the item is not repairable, we will either replace the circuit board entirely or refund the cost of the repair, at our discretion.
This warranty is non-transferable and applies to the original purchaser only.
